Stainless Steel Flanges

Stainless steel flange is a standardized disc-shaped connecting component made from stainless steel. Its primary function is to create a detachable, pressure-tight seal between pipes, valves, or equipment by bolting two flanges together with a gasket in between. Designed to maintain structural integrity and sealing reliability under demanding conditions-such as high pressure, temperature extremes, and corrosive environments-stainless steel flanges are widely used in industries requiring high hygiene standards, corrosion resistance, or high-temperature and high-pressure performance.

1. Basic Structure

• Flange Body: The main pressure-bearing component, with thickness and diameter designed according to pressure ratings.
• Bolt Holes: Evenly distributed around the circumference to accommodate bolts for fastening.
• Sealing Face: Common types include raised face (RF), flat face (FF), and ring-type joint (RTJ), each influencing sealing effectiveness.

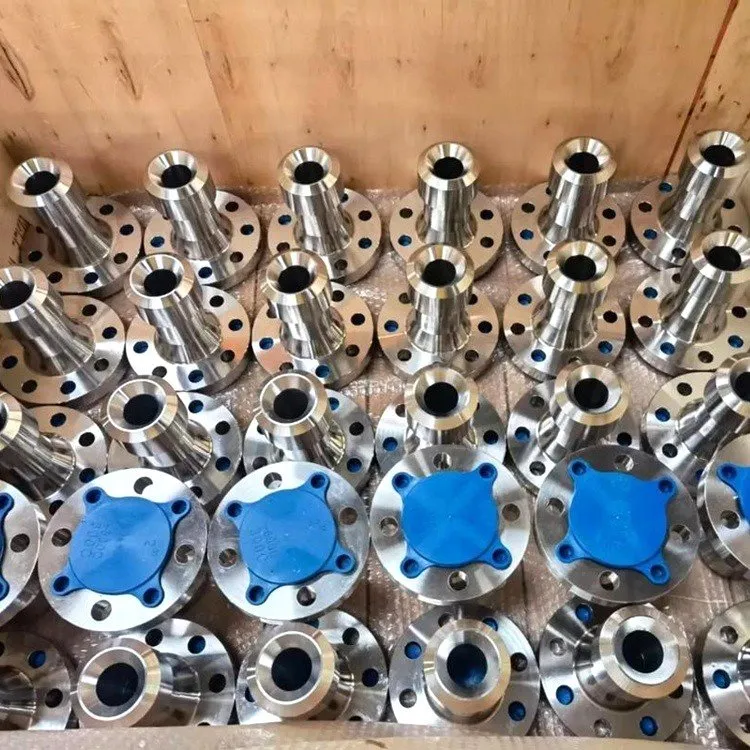

• Neck Structure: For example, welding neck flanges (WN) feature a tapered neck for welding to pipes, making them suitable for high-pressure and high-temperature applications.

2. Types by Connection Method

• Welding Neck Flange: Installed by welding, offering high strength for critical applications.
• Threaded Flange: Connected via threads, avoiding welding and facilitating disassembly.
• Blind Flange: Used to seal the end of a pipeline, allowing for system maintenance.
• Lapped Joint Flange: Used with a stub end, simplifying alignment during installation.

The performance of stainless steel flanges depends heavily on material selection, primarily categorized into two types:

1. Austenitic Stainless Steel

• Properties: Contains nickel and chromium, offering excellent corrosion resistance, toughness, and non-magnetic properties.
• Common Grades:

 304 (ASTM A182 F304): General-purpose, resistant to mildly corrosive media.

 316L (ASTM A182 F316L): Contains molybdenum, is resistant to chloride ion corrosion, ideal for marine and chemical environments.

 321/347H (ASTM A182 F321/F347H): Stabilized with titanium or niobium, resistant to intergranular corrosion and suitable for high temperatures (up to 800°C).

 904L (ASTM A182 F904L): High alloy content, resistant to strong corrosive media like concentrated sulfuric and phosphoric acids.

2. Duplex Stainless Steel

• Properties: Combines austenitic and ferritic structures, offering high strength (approximately twice that of 316L) and excellent stress corrosion cracking resistance.
• Common Grades:

 F51/F60 (2205 and Super Duplex): Resistant to chloride corrosion, used in subsea pipelines and chemical reactors.

 F65 (2507 Super Duplex): Higher strength and corrosion resistance for extreme environments.

• Energy and Power: Connections in high-temperature steam pipelines in nuclear and thermal power systems, requiring materials with high-temperature stability (e.g., 347H flanges).
• Petrochemical Industry: Used in refining units and sour gas pipelines requiring resistance to hydrogen sulfide corrosion (e.g., duplex grades F51/F55).
• Shipbuilding and Offshore Engineering: Seawater cooling systems and subsea oil pipelines requiring resistance to saltwater corrosion (e.g., 316L or duplex flanges).
• Food and Pharmaceutical Industry: Hygienic pipeline connections requiring smooth, non-porous surfaces (e.g., polished 316L flanges).
• Construction and Machinery: Central air conditioning systems and high-pressure fluid transport equipment, emphasizing sealing reliability and longevity.

Selecting stainless steel flanges requires consideration of:

• Pressure-Temperature Ratings: Based on standards like ASME B16.5 or EN 1092-1, matching system design parameters.
• Media Compatibility: Material selection based on corrosion resistance (e.g., 316L or duplex for chloride-rich environments).
• Welding and Installation Requirements: Welding neck flanges require compatible welding materials, while threaded flanges need corrosion-resistant threads.

• High-Performance Materials: Increased use of high-alloy stainless steels (e.g., 6Mo alloys) and customized duplex steels for more demanding conditions.
• Lightweight Design: Structural optimization through finite element analysis to reduce material usage without compromising pressure-bearing capacity.
• Smart Monitoring: Integration of sensors for real-time monitoring of sealing conditions and leak prevention.

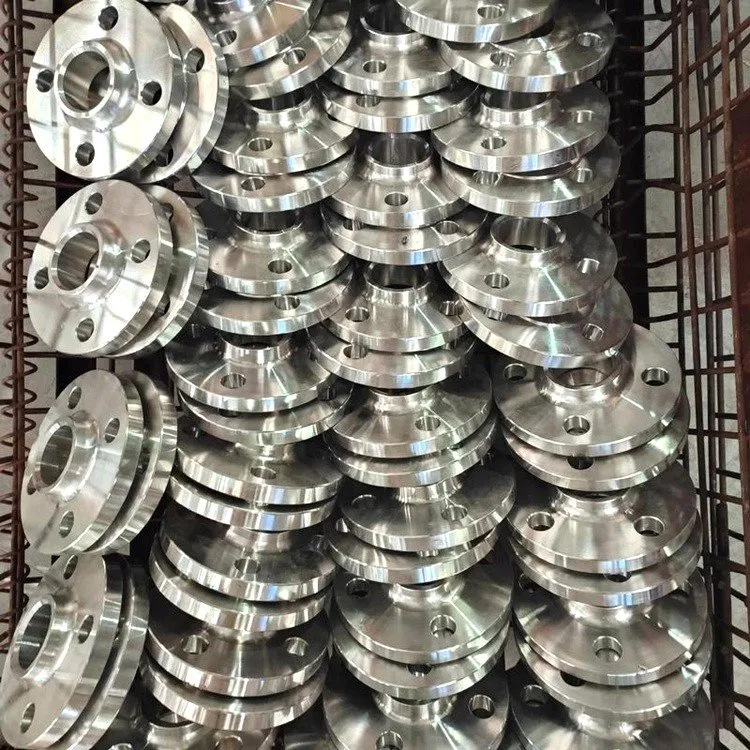

Hebei Yongqiang Pipe Line Co., Ltd maintains a large inventory of stainless and duplex steel flanges year-round, including WN flange, S/O flange, Flat flange, blind flange, and more. See the table below for some specifications. In addition, our company can provide customized product services and produce various stainless and duplex steel flanges according to the customer's steel grade, drawings, samples, or parameter requirements.

As critical components in industrial connection systems, stainless steel flanges support the safety and efficiency of modern industries through material diversity, structural adaptability, and standardized design. With the integration of new materials and digital technologies, their performance and reliability will continue to advance, providing comprehensive solutions for core sectors such as energy and chemical processing.

If you need stainless and duplex steel flanges, please feel free to contact us.
