Products Description
A333 Gr.3 Steel Pipe is a low temperature seamless steel pipe that meets the requirements of ASTM A333 standard and is suitable for pressure conveying systems in low temperature environments of -45℃. The product is made of refined carbon-manganese alloy steel and has good low temperature toughness and excellent welding performance.
Advantages
Stable Low-Temperature Toughness
Through precise control of the nickel content between 3.18% and 3.82% and a normalizing heat treatment process, the material maintains an elongation of over 30% at -50°C, preventing low-temperature brittle fracture and making it suitable for cryogenic pressure systems and installations in cold regions.
Stable Yield Properties
After forming, temperature-controlled normalizing treatment, combined with full-process tension straightening and fine-tuning straightening, ensures a stable yield strength of over 240 MPa with a yield deviation within ±10 MPa, meeting the safety requirements of continuous loads in structures under medium pressure.
High-Purity Components
Using an off-furnace refining and vacuum degassing process, phosphorus and sulfur contents are controlled to no more than 0.025%, minimizing the impact of inclusions on the toughness of the weld and heat-affected zones, improving weldability and long-term service stability.
High Forming Consistency
Supports cold-drawn forming with a maximum wall thickness of 50mm. Combined with multi-pass annealing and a fully automated laser thickness measurement system, wall thickness consistency is controlled within ±0.3mm, enhancing stable operation in high-pressure transmission and heat exchange systems.
Applications
Applications in Cryogenic Pipeline Systems
Used in cryogenic media transportation systems in the oil, natural gas, and chemical industries, it provides pressure-bearing and low-temperature embrittlement resistance, ensuring long-term, stable operation of the equipment.
Applications in Liquefied Natural Gas Storage and Transportation Facilities
Used in LNG storage tanks and pipelines, it handles fluid transmission in low-temperature environments, exhibits excellent crack resistance, and reduces the risk of system leakage and damage.
Applications in Cryogenic Pressure Vessel Manufacturing
Used as structural steel pipe in the manufacture of cryogenic pressure vessels, it provides support and sealing, and is suitable for the continuous operation of pressure-bearing equipment at low temperatures.
Applications in Chemical Cooling and Heat Exchange Systems
Used as heat exchange tubes in the cryogenic cooling process of chemical plants, it provides heat exchange and resistance to temperature shock, ensuring equipment efficiency and thermal conductivity stability.
Company Strength
Hebei Yongqiang Pipeline Co., Ltd. is a professional steel pipe supplier integrating R&D, production and sales. Its products include austenitic stainless steel pipes, duplex stainless steel pipes, alloy steel pipes, casing steel pipes, steel pipe accessories, steel flanges, etc.
Sales Market: Our company's business covers the Middle East, North Africa, South America, Southeast Asia, Central America and other regions, with an annual export volume of more than 10 million US dollars.
Our Products: We provide a range of high-quality steel products, including austenitic stainless steel pipes, alloy steel pipes, casing steel pipes and steel flanges. These products are designed to meet various industrial needs.
Our Services: Our company can provide 24-hour service to negotiate product parameters, prices, delivery dates, transportation and other details with customers.
Product Parameters
|
Product Name |
ASTM A333 Gr.3 Steel Pipe |
|
Out Diameter |
21.3-610mm |
|
Wall Thickness |
2-50mm |
|
Material Standard |
ASTM A333 |
|
Steel Grade |
ASTM A333 Gr.3 |
|
Surface |
Anti rust paint, Anti rust oil, vanish paint |
|
Packing |
Plastic Cap, Bundle, Woven bag, Wooden Case, Iron Frame |
|
Delivery |
Within 7 days with stock, 15-50 days based on production |
|
Payment |
T/T, D/P, L/C at sight, Usance L/C etc. |
Chemical Requirements
|
Composition, % |
||||||
|
Grade |
C |
Mn |
P |
S |
Si |
Ni |
|
Gr.3 |
0.19max |
0.31-0.64 |
0.025max |
0.025max |
0.18-0.37 |
3.18-3.82 |
Mechanical Property
|
Grade |
Tensile strength Min psi(Mpa) |
Yield strength Min psi(Mpa) |
Elongation % min |
|
Gr.3 |
65000(450) |
35000(240) |
30 |

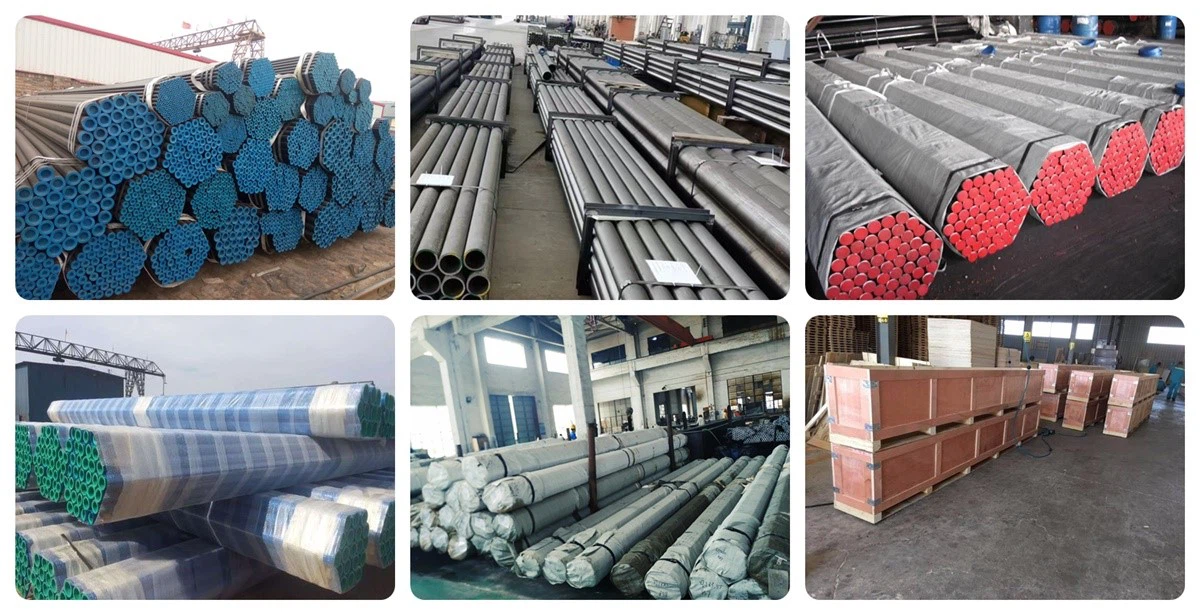

Product Show
Our low-temperature steel pipes are smooth, flat, and free from pits and burrs, meeting precise dimensional tolerances specified by standards or customer requirements.
Product Packing
To prevent goods loss during transportation, we offer suitable packaging methods tailored to each batch of products as per customer specifications. In cases where no specific requirements are stated, all products undergo anti-rust treatment on their surfaces.
We specialize in ASTM A333 Gr.3 steel pipes. Feel free to contact us or visit our company.
Email: johnny@yqpipeline.com
WhatsApp: +86 15632733100
Tel: +86 317 6376727
FAQ
Q: Do you support third-party testing for the A333 Gr.3 steel pipes you provide?
A: Yes, we can provide third-party testing services such as SGS, BV, TÜV, etc., and the cost is determined by negotiation with the customer.
Q: What size range can the product provide?
A: The conventional outer diameter is 21.3mm-610mm, the wall thickness is 2.5mm-40mm, and the length is generally 6m or 12m, which can be customized.
Q: Can you issue material certificates and certificates of origin?
A: MTC (EN10204 3.1 or 3.2) and certificates of origin (such as CO, FORM E, etc.) can be provided to meet export requirements.
Q: What is the minimum order quantity? How long is the delivery time?
A: The general minimum order quantity is 5 tons, and conventional specifications can be shipped within 7-10 days. Customized specifications are subject to production schedule.
Q: Does your steel pipe support non-destructive testing?
A: Yes, including ultrasonic testing (UT), magnetic particle testing (MT), etc., to ensure that there are no internal and external defects.
