Stainless Steel Pipe Fittings: A Comprehensive Overview

Stainless steel pipe fittings are connecting components used in piping systems, manufactured from stainless steel to provide exceptional corrosion resistance, high strength, durability across temperature variations, hygienic properties, and long service life. Stainless steel fittings are critical components in industries such as petrochemical, oil & gas, shipbuilding, power generation, food & beverage, and pharmaceutical processing.

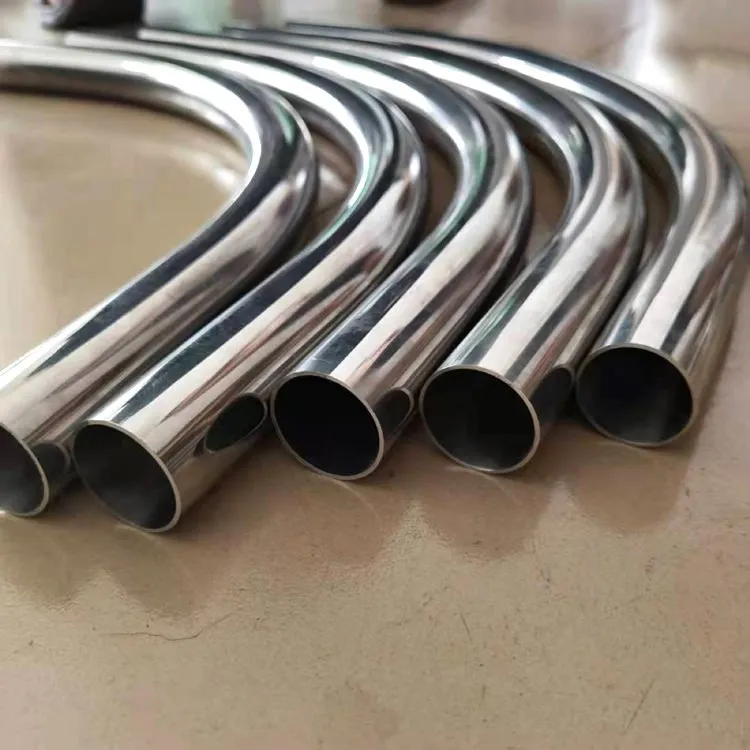

• Stainless Steel Elbow & Bend: Used to change the direction of a pipeline. "Elbows" typically refer to standardized short-radius (SR) or long-radius (LR) bends, while "Bends" often refer to custom-fabricated pipes with specific angles.

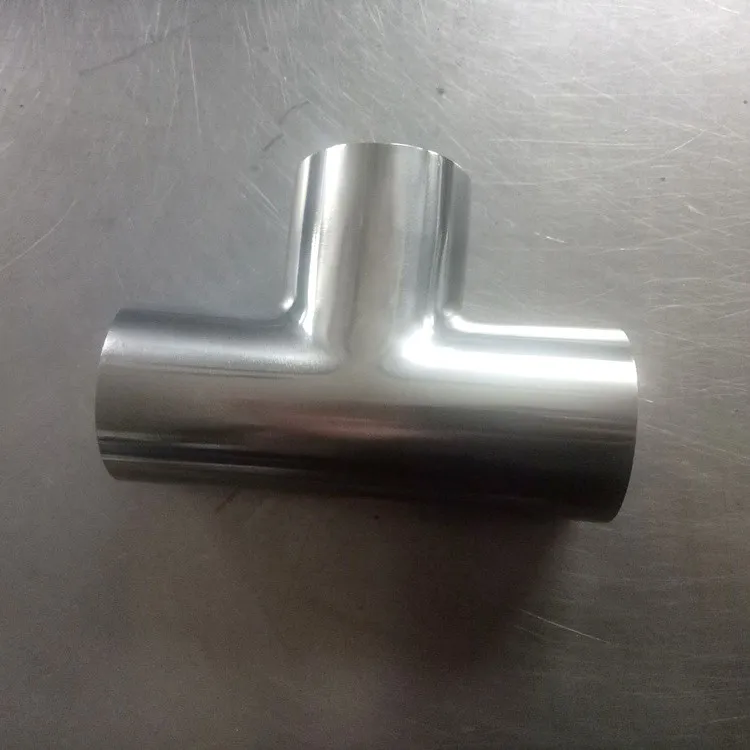

• Stainless Steel Tee: Used where a branch line is required, connecting three pipes. Available in equal and reducing types.
• Stainless Steel Cross: Used where four pipes meet, allowing for the division or combination of flows.
• Stainless Steel Reducer (Concentric & Eccentric): Used to connect two pipes of different diameters. Concentric reducers maintain the centerline, while eccentric reducers keep one side flat (often used to maintain pipe racks or bottom-of-pipe levels).
• Stainless Steel Cap: Used to seal the end of a pipe.
• Other Fittings: Include couplings (unions), flanges, stub ends, etc.

1. Butt-Weld (BW) Fittings

Characteristics: The fitting has a bevelled end to be welded directly to the pipe. Offers the highest strength, best sealing performance, and is suitable for high-pressure and high-temperature applications.

International Standards:

• US Standard (ASME): ASME B16.9 (Factory-Made Wrought Butt-Welding Fittings), ASME B16.28 (Wrought Steel Butt-Welding Short Radius Elbows and Returns).
• European Standard (EN): EN 10253-4 (Butt-welding pipe fittings - Part 4: Wrought austenitic and austenitic-ferritic (duplex stainless steels).

2. Socket-Weld (SW) Fittings

Characteristics: The pipe is inserted into a socket in the fitting and fillet-welded around the outside. Ideal for smaller pipe sizes (typically under NPS 3/DN 80) and moderate pressure applications where disassembly is not intended.

International Standard:

• Primary Standard: ASME B16.11 (Forged Fittings, Socket-Welding and Threaded).

3. Threaded (THD) Fittings

Characteristics: Feature internal (FPT) or external (MPT) threads for screw connections. Allow for easy assembly and disassembly without welding, but have lower pressure ratings and potential leak paths. Not recommended for vibratory services.

International Standards:

• US Standard: ASME B16.11 (Fittings), ASME B1.20.1 (defines NPT - National Pipe Taper thread standard).
• European Standard: EN 10226-1 (Pipe threads where pressure-tight joints are made on the threads - Part 1: Taper external threads and parallel internal threads - Dimensions, tolerances and designation). Common thread types include R/Rp (ISO 7-1).

Classification by Material: US (ASTM/ASME) and European (EN) Standards

The material grade is fundamental to the fitting's performance. Below is a table listing all mentioned materials with their standard designations.

• ASTM A403: Standard specification for wrought austenitic stainless steel piping fittings. "WP" designates the material grade for fittings.
• ASTM A182: Standard specification for forged or rolled alloy and stainless steel pipe flanges, forged fittings, valves, and parts for high-temperature service. Commonly used for flanged fittings and other components.
• UNS (Unified Numbering System): A cross-reference system for metals and alloys, crucial for material identification.
• EN Standards: Use a Material Number (e.g., 1.4404) as the primary identifier, often accompanied by a chemical designation (e.g., X2CrNiMo17-12-2).

Choosing the correct stainless steel sittings requires careful analysis of:

• Service Environment: Fluid composition, concentration, temperature, and especially chloride ion content (which can cause pitting and Stress Corrosion Cracking - SCC).
• Pressure & Temperature Ratings: Materials weaken at high temperatures; some grades are specifically designed for elevated temperature service.
• Relevant Standards & Certifications: The project specifications will dictate the required standard system (ASME or EN). Certifications like PED 2014/68/EU (Pressure Equipment Directive) or NACE MR0175/ISO 15156 (for sour service) may be required.
• Life-Cycle Cost: While duplex stainless steels have a higher initial cost than 316L, their higher strength may allow for thinner walls, and their longer life in aggressive environments can offer a better total cost of ownership.

Hebei Yongqiang Pipe Line Co., Ltd maintains a large inventory of stainless steel pipe fittings year-round, including elbows, tees, reducers, and more. See the table below for some specifications. In addition, our company can provide customized product services and produce various stainless steel pipe fittings according to customers' steel grade, drawings, samples, or parameter requirements, such as 30° and 60° elbows, Y-type tees, etc.
